Saturday, May 21, 2011

2002 BMW 325I

That is right a Bimmer. Now, I don't normally even touch these cars but I dabble from time to time. This is one of those times one of my good customers has this pretty clean BMW with 181,582 miles on it. Apparently, it had a Check Engine Lamp on and one of his techs pulled a P0171 (System Lean) code. When I get there the codes and more importantly the freeze frame data has been cleared. Since I don't normally diagnose these cars, all I can use is generic scantool data. So I focus in on our fuel trims and MAF (Mass Air Flow) sensor inputs. I know these have common issues with MAF sensors and Ventilation valves causing lean codes. I check fuel trims at an idle and they are pretty tight, raced up they start to drift into the positive side. I figure slam dunk I have a dirty MAF.
Looking at the MAF hot wire it is really clean and the customer has a factory BMW air filter. No cheapy air filter here. So, no slam dunk here. A road test is in order. I monitor short term fuel trim, rpm, and MAF g/s values. I am still thinking bad MAF here. The peak g/s easily achieves our liter displacement times 40 rule of thumb and short term fuel trims do not follow air flow. The one thing I do notice during the test drive is a distinct whistle on wide open throttle. Hmmm. Experience tells me when I hear a whistle it is usually caused by an intake restriction or some type of hole in the air tract. Since I already inspected the air box and it has a quality air filter installed. I head to the air ducting after the MAF sensor.
Bingo! Now I am a BMW expert. No way! A seasoned BMW tech would have probably found this in half the time. Here is another shot below.
The point here is some strategic testing even in generic mode and we can fix cars we are not exactly familiar with. I report my findings to the shop owner and advised him to change that much maligned ventilation valve with the updated one as maintenance considering the mileage on this car. I also advise him of Standard Motor Products new line called TechSmart that my good buddy Joe Donaggio manages. This new line is all previously dealer only, high failure, problem solving parts like these ventilation valves. It is a great alternative to going back to the dealer. I and others give Joe constant feedback from the technical "real" world and he does the leg work to make it happen. Check it out at

Thursday, May 19, 2011

VSCC SeeRed at Donnington Park 21st - 22nd

GN Spider c1920, Shelsley Walsh Hillclimb
Oil Sketch for Painting demonstration this weekend.

I will be running a trade stand at this weekends VSCC event SeeRed at Donnington Park. The above oil sketch will form the basis for the painting demonstration for the weekend.

I have two spare tickets for the weekend for anyone that is interested.
Please contact me before the weekend if you are interested in free entry.

Organised by the VSCC who have been racing at Donington Park since the 1930s, SeeRed brings the best Vintage and Historic cars and drivers to Donington . Spectators will be fully entertained by a programme of 17 races over the weekend that highlights Pre-war Sports-Cars, Vintage and Historic (Pre -61) Grand Prix Cars, 1950s Sports Racing Cars, Formula Junior, Equipe GTS (50s and 60s production sports-cars) and 500s. More info along with race schedule can be found at the event website:

Sunday, May 15, 2011

2005 GMC Yukon Denali

This is a nice 2005 GMC Yukon with 156K miles on it, I am asked to look at on this nice and sunny morning. The customer complaint is that the Service Engine Soon lamp illuminates. I start the truck up and it runs quite well and the lamp is not on presently. I scan for current codes and get none. Scanning for history codes I get a P0171 (System lean bank 1), P0174 (System lean bank 2), and a P0101 (Mass Air Flow Performance). Now at this point most techs would say put a mass air flow sensor in it and send it on it's way. I need to be absolutely sure before I stick my neck out. So many factors could cause these codes from weak fuel pumps to glitchy connections at the mass air flow sensor to damaged air filters causing turbulence that would affect the mass air flow sensors calculations. So the first thing I do is a visual. You never know what you are going to find with your eyes.
Nothing amiss here. I check the air filter for fit and function as well as the air ducting. All seems to be in good working order. The mass air flow sensor is installed correctly as well. There are certain GM applications where the mass air flow can be installed incorrectly. There are arrows on the sensor indicating flow direction. I also look to see if there are any aftermarket air flow ducting, air filters, etc and make notes of it. It wouldn't be the first time I have seen the $450.00 chrome billet air flow tube that was supposed to give you 65 more horsepower causing issues such as this. Alright time to look at some scan data. These new generation GM V-8 motors have had their fair share of intake manifiold gasket issues. Looking at fuel trims at an idle and raced up show some pretty tight fuel control. Plus, looking at some freeze frame and failure records show me these codes set at mid range rpm's with the engine fully warmed up. Typical intake manifold gasket issues rear their heads more at low speeds and low engine temperatures.
Time to take a test drive. If you have been following my blog you know that I have been beating up my new scanner the Ottotest pretty bad. I decided to use it on this vehicle because of it's excellent graphing capabilities.

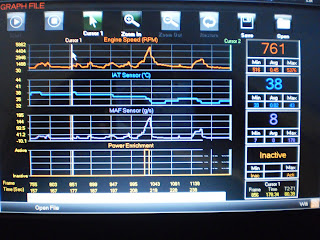

The above is part of a graph I did on the road test. Remember, click on the pics to enlarge. I graphed mass air flow sensor grams per second, short term fuel trims for both banks, and power enrichment mode. I took actual photos of these screen shots for two reasons. One, I wanted to show you the multi colored graph which is very cool. The second is that when you save the graph on Ottotest to export, it is a xps file that is black and white. Something I hope they fix. Saving it on the Ottotest retains the color, you can also scroll after the fact, as well as play with the cursors. The above screen shot is meant to show you the relationship betwen air flow and short term fuel trim. The actual numbers on the right reflect cursor 1, which isn't even on any event in this field so diregard for right now. Here is another screenshot below.
